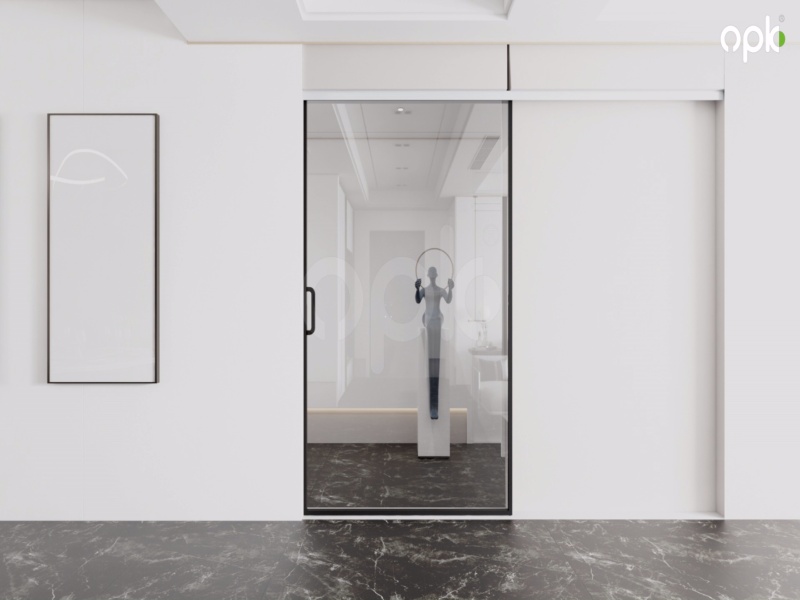

OPK Satellite 15 aluminum door is a sliding door system in the construction sector.
Its technically advanced system makes OPK Satellite 15 aluminum door suitable for ceiling, wall and pocket applications.
Door width |
≥600mm |
Door thickness |
W35-45mm |
Door weight |
120kg |
Height adjustment |
±3mm |
Damping |
both sides |
OPK Satellite 15 aluminum door is a sliding door system in the construction sector.
Its technically advanced system makes OPK Satellite 15 aluminum door suitable for ceiling, wall and pocket applications.
High-quality carriages with ball-bearing plastic rollers move in elegant aluminium profiles EV1, which guarantees a light, wear-resistant running track and quiet movement. Moving parts are protected from dirt by a self-cleaning construction. The assembly is simple, fast and efficient.
Aluminum doors
Easy, fast installation, height adjustment +/- 3 mm
Door weight up to 120 kg
Door width from 600 mm
Both sides damping
Through the mounting track retrofitting the running track is possible
Running track can be removed
Elegant due to a small distance between door and running track (small gap)
Ball-bearing floor guide
Office, kitchen, bathroom
Living room, dinning room,, bedroom, passage
Storage
Tested according to SGS-CSTC EN 1527:2013
